Convenient Manual Operation with HDJ Series Tension Hysteresis Dynamometer Fixtures

Fixture characteristics:

　　•Maximum clamping motor diameter 30cm

　　•Applicable to all tension hysteresis dynamometer series products

　　• Safety lock structure

　　• Guide rail slider facilitates alignment of motor and dynamometer

　　• Easy three-dimensional adjustment operation

　　• Vibration protection

　　• Anti-scratch motor surface design

　　• No tool adjustment, manual operation

• Can be used with tension T-slot bottom plate or test bench

　　product description:

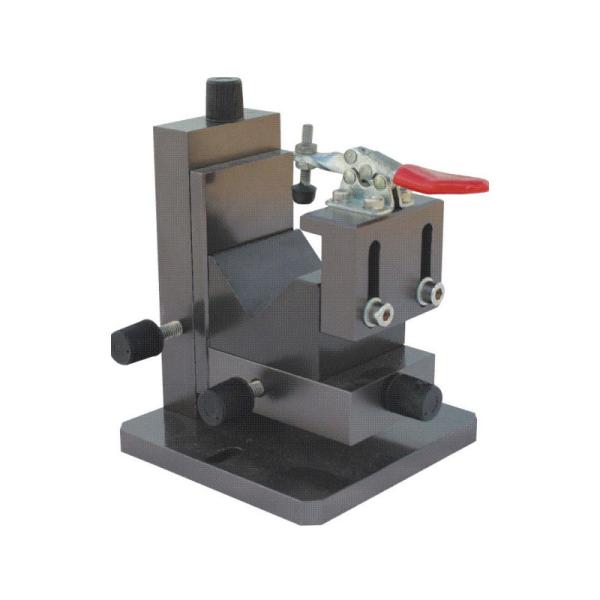

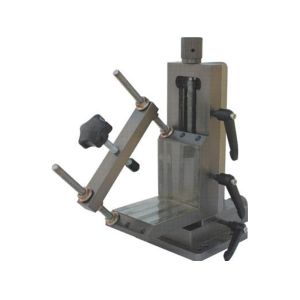

　　HDJ series fixtures use one or two beams to cooperate with the locking screw to fix the housing of the motor under test in the radial direction. The distance of the frame beam can be adjusted by bolts, which is suitable for round motors or square motors with different diameters. In addition, V-shaped fixtures or L-shaped fixtures can also be customized to match the motors under test or external rotor motors with irregular shapes.

　　In order to protect the outer surface of the motor under test from damage, the top of the locking screw is protected by plastic contact and is shockproof. The parts of the jig contacting the surface of the motor are made of Ninong rubber to prevent the surface from being scratched and damaged.

　　Comparison of fixture models:
