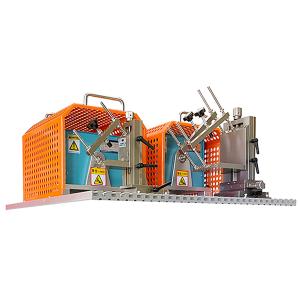

Product Description:
The YT series motor load performance test equipment is an advanced
and comprehensive dynamometer designed for testing the motor load
performance and life test after loading. This test equipment is
perfect for use in motor factories production line and motor
engineers' R&D and design. It comprises of magnetic particle
dynamometer, hysteresis dynamometer, industrial computer, electric
parameter acquisition card, motor power supply, and other necessary
components.
The motor load performance test equipment is specifically useful
for the testing of various motor load qualities such as torque,
rotational speed, output power, input power, current and voltage.
The equipment comes with standard software and is equipped to
perform these vital tests efficiently and quickly.
The fixtures of this dynamometer are designed to manually clamp and
fix the motor shape within 20-150 mm. At the client's request,
customized motor fixtures are also available. Please contact the
business for more details.
This equipment has a maximum power of 10KW and delivery time is up
to 60 days. It's an integrated and comprehensive hysteresis and
magnetic particle motor load dynamometer that provides accurate
testing and ensures efficient motor performance.
Features:
- Product Name: Dynamometer Load Test
- Resolution: 0.0001N
- Software Compatibility: Windows, IOS, Android
- Storage Temperature: -20°C To 70°C
- Accuracy: ±0.5%
- Communication Interface: RS232, RS485, USB
This Dynamometer Load Test is an Engine Dynometer and Motor Torque
Verification Device which is perfect for Motor Torque Measurement
Device.
Technical Parameters:
Ordinal Numbers and Power Ratings of Models
Our company offers a range of models with different power ratings:
Model 1
Ordinal Number: 1
Model Number: YTCZ-1010-HD203
Rated Power: 580W
Maximum Power in 5 Minutes: 1000W
Torque Test Range: 5-20 Kg.cm
Maximum Speed RPM: 25000
Cooling Method: Compressed air
Model 2
Ordinal Number: 2
Model Number: YTCZ-1010-HD503
Rated Power: 1000W
Maximum Power in 5 Minutes: 1500W
Torque Test Range: 5-50 Kg.cm
Maximum Speed RPM: 25000
Cooling Method: Compressed air
Model 3
Ordinal Number: 3
Model Number: YTCZ-1010-HD104
Rated Power: 1800W
Maximum Power in 5 Minutes: 3200W
Torque Test Range: 60-100 Kg.cm
Maximum Speed RPM: 20000
Cooling Method: Compressed air
Model 4
Ordinal Number: 4
Model Number: YTCZ-1010-HD284
Rated Power: 3800W
Maximum Power in 5 Minutes: 7000W
Torque Test Range: 50-100 Kg.cm
Maximum Speed RPM: 10000-12000
Cooling Method: Compressed air
Model 5
Ordinal Number: 5
Model Number: YTCF-ICS500-50
Rated Power: 1500W
Maximum Power in 5 Minutes: 1800W
Torque Test Range: 100-500 Kg.cm
Maximum Speed RPM: 1000
Cooling Method: Water cooler cooling
Model 7
Ordinal Number: 7
Model Number: YTCF-ICS500-100
Rated Power: 3500W
Maximum Power in 5 Minutes: 5000W
Torque Test Range: 100-1000 Kg.cm
Maximum Speed RPM: 800
Cooling Method: Water cooler cooling
Model 8
Ordinal Number: 8
Model Number: YTCF-ICS500-500
Rated Power: 8000W
Maximum Power in 5 Minutes: 10000W
Torque Test Range: 1000-5000 Kg.cm
Maximum Speed RPM: 500
Cooling Method: Water cooler cooling
Model 9
Ordinal Number: 9
Model Number: YTSF-ACZ7-30A
Rated Power: 3000W
Maximum Power in 5 Minutes: 3500W
Torque Test Range: 60-500 Kg.cm
Maximum Speed RPM: 6000
Cooling Method: Natural air cooling
Applications:
The testing items for this equipment include torque, speed, output
power, input power, current, and voltage. This device is equipped
with standard software that allows it to output both T-N curve and
data query tables.
If you're looking for high-quality and reliable testing equipment,
then you've come to the right place. This device is perfect for
measuring various parameters such as torque, speed, output power,
input power, current, and voltage.
Thanks to its standard software, the device is extremely
user-friendly. You can easily output T-N curves and data query
tables without any hassle. It's an ideal tool for both industrial
and research purposes.
Testing Equipment
- Torque
- Speed
- Output Power
- Input Power
- Current
- Voltage
This testing equipment is equipped with standard software that
enables it to output T-N curves and data query tables, making it an
essential tool for both industrial and research purposes.
Customization:
At Precision Motive, we offer product customization services for
our Dynamometer Load Test device, model number PWHD, which serves
as a Motor Torque Verification Device, Motor Torque Measurement
Device, and Motor Torque Verification Device.
Our Dynamometer Load Test device is manufactured in China and is
equipped with a Digital LCD display for easy reading. With an
accuracy of ±0.5%, our device guarantees precise measurements. It
also comes with multiple communication interfaces including RS232,
RS485, and USB, allowing for easy data transfer.
The Load Cell Protection of our Dynamometer Load Test device is
rated IP67, ensuring durability and protection against harsh
environments. Additionally, our device is compatible with various
operating systems including Windows, IOS, and Android, making it
easy to integrate with your existing software.
Support and Services:
The Dynamometer Load Test product offers comprehensive technical
support and services to ensure that you get the most out of your
testing equipment. Our team of highly trained technicians is
available to assist you with any questions or issues you may
encounter during setup, calibration, or operation of your
dynamometer load test system.
In addition to our technical support, we also offer a range of
services to help you keep your equipment running smoothly. These
include:
- Installation and setup
- Calibration and maintenance
- Repair and replacement of parts
- Training and education
Our goal is to provide you with the highest quality service
possible, so you can focus on your testing needs and achieve
accurate and reliable results. Contact us today to learn more about
our technical support and service offerings.
Packing and Shipping:
Product Packaging:
- High-quality cardboard box
- Protective foam inserts
- Product manual
Shipping:
- Ships within 1-2 business days
- Standard shipping via UPS or FedEx
- Shipping cost calculated at checkout
FAQ:
Q: What is the brand name of the Dynamometer Load Test?
A: The brand name of the Dynamometer Load Test is Precision Motive.
Q: What is the model number of the Dynamometer Load Test?
A: The model number of the Dynamometer Load Test is PWHD.
Q: Where is the Dynamometer Load Test manufactured?
A: The Dynamometer Load Test is manufactured in China.
Q: What is the maximum load capacity of the Dynamometer Load Test?
A: The maximum load capacity of the Dynamometer Load Test depends on
the specific model. Please refer to the product specifications for
more information.
Q: What is the accuracy of the Dynamometer Load Test?
A: The accuracy of the Dynamometer Load Test depends on the specific
model. Please refer to the product specifications for more
information.
